Alstom Metropolis C830

The Alstom Metropolis C830 trains are the first generation of rolling stock for the Circle Line. It is also the second generation of Communication-Based Train Control (CBTC) rolling stock in Singapore.

There are 40 trains of three cars each and have been in passenger service since 28 May 2009. The trains are housed in Kim Chuan Depot.

The automated CBTC system version, previously known as the "moving block system", do not require traditional "fixed-block track circuits" for determining the train position. Instead, they rely on "continuous two-way digital communication" between each controlled train and the control centre.


Advertisement

At a Glance

Alstom Metropolis C830

Circle Line

Built 2006 - 2008

40 trains of 3 cars each, numbered 801 to 840

Trains maintained by SMRT Trains

History

Contract 830 for the design and building of the trains was awarded to french company Alstom Transport.

The C830 trains are similar to the Alstom Metropolis C751A counterparts on the North East Line, utilising Alstom's Urbalis 300 CBTC system. However, the C830 trains receive power from the third rail instead of the overhead catenary. The LCD screens found on board the C751A trains were also depreciated in the C830 trains. The trains feature an additional viewing space on the detrainment door at both ends of the train, allowing passengers a view of the tunnel while on board.

40 trains of three cars each were bought by the Land Transport Authority for the five stages of the Circle Line, which commenced service on 28 May 2009 with the Circle Line Stage 3.

Lines


Advertisement

Design

Exterior

The exterior colour of the train is black and has a red strip through the whole train. The design of the train is also curved, giving it a more streamlined look.

A yellow LED display at the top left corner of the train's head is used to indicate the train numbers.

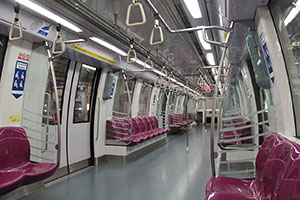

Interior

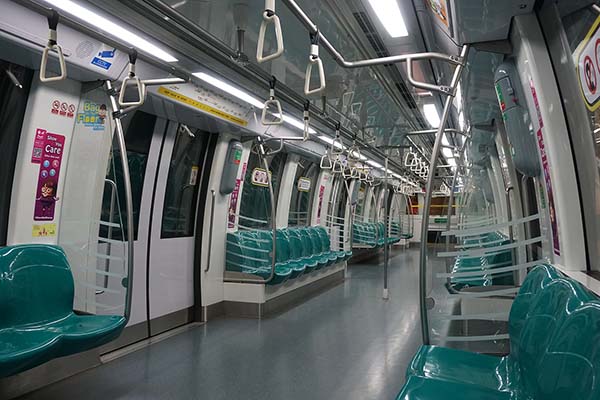

There are three colour schemes in the train cars, with each colour applied to one car of the train.

The colour of the seats uses a single shade of maroon, blue and green in the three different cars.

Features

Viewing Space + Emergency Exits

Viewing Space + Emergency Exits

Both ends of the train feature a viewing space and an emergency exit.

The viewing space allows passengers to have a view of the tunnel through the windscreen.

The emergency exit ramp will be deployed in an emergency.

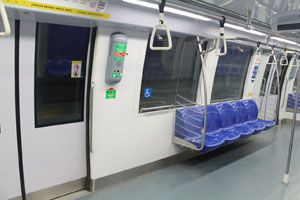

Wheelchair Bay

Wheelchair Bay

Two wheelchair bays are located in the middle car of every C830 train at doors 5 and 8.

Gangway Lights

Gangway Lights

Gangway lights are installed to illuminate the gangway area of the train cars.

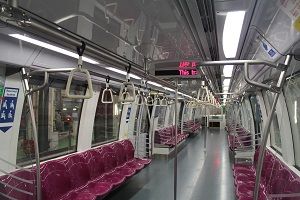

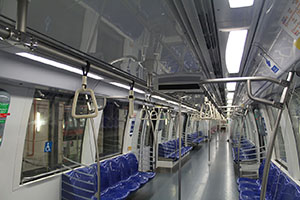

Overhead Hand Grips

Overhead Hand Grips

Three rows of hand grips are positioned along the aisles of the train cabins to provide standing passengers with increased support.

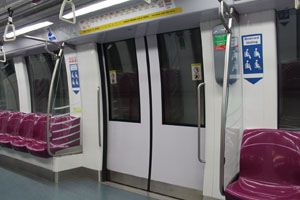

Grab-Handles at Doorways

Grab-Handles at Doorways

Provide support for passengers boarding or alighting the trains and for passengers standing near the doors.

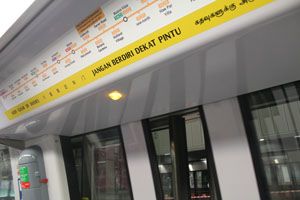

Door Closing Indicator

Door Closing Indicator

Yellow alert lights that are positioned above each door will light up when the doors are closing.

Train Travel Information System

Train Travel Information System

The Train Travel Information System shows useful travel information to passengers, such as the current and next train stations which the train will call at, the terminal station and other useful travel messages.

Read more >

Builder Plate

Builder Plate

The plate lists the companies involved in the manufacture of the train, and also the year it was built.

It is located at both ends of the train.

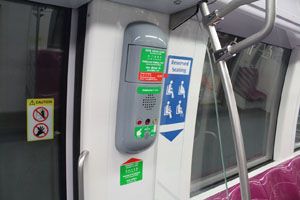

Emergency Communication Button + Door Unlock Handle

Emergency Communication Button + Door Unlock Handle

Emergency Communication Buttons are located at the side of the train doors to contact the train staff in an emergency.

It is integrated with the Emergency Door Unlock Handle.

Modifications

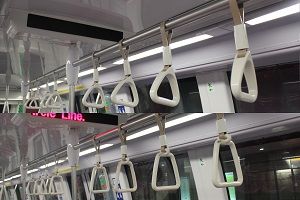

Design of Hand Grips

Design of Hand Grips

Variations of the hand grips were found in selected C830 train cars.

These hand grips were removed when the handrails were modified.

Modification of Handrails

Modification of Handrails

Handrails were modified as a trial by LTA to encourage more commuters to move towards the centre of the car.

This programme was experimented in train car 8042.

The trial was successful and it has been rolled out to the rest of the C830 train cars.

Technical Specifications

Mc1
Tc
Mc2

Mc: Motor car; Tc: Trailer car (unpowered)

Manufacturer
Alstom Transport
Number Built
120 cars (40 trains)
Train Numbers
801 - 840
Car Body Construction
Welded aluminium
Traction Control
IGBT-VVVF (Alstom ONIX)
Line Voltage
750V DC (nominal) from third rail
Gauge
Standard gauge (1435mm)
Maximum Speed
90km/h (design)
78km/h (service)
Train Length
70.1m (3 cars)
Car Length
23.65m (Mc1/Mc2)
22.80m (Tc)
Width
3.2m
Height
3.7m
Train Weight
120t (tare condition/unladen)
199t (fully laden)
Doors
1.45m wide, 8 per car
Seating Capacity
146 seats
